MES Lungtest Mobile Spirometer

Spirometr Lungtest Mobile

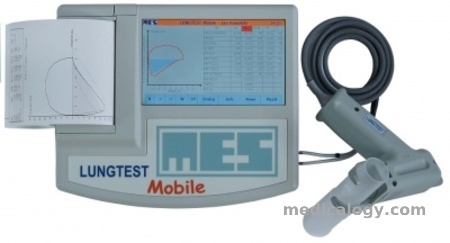

Lungtest Mobile is a small portable diagnostic spirometer to be directly connected with built-in thermal printer. The spirometer has a big and wide angle high resolution touch-screen. The examination safety is based exclusively on the accessories provided in the set without any need to use anti-bacterial filters.
A spirometer contains a built-in specialized computer for performing tests and developing results, an accurate measurement unit and very fast and quiet thermal printer. A patented replaceable pneumotach headpieces protect patients against infections.Lungtest Mobile spirometer is easy to use and to maintain. High measurement accuracy and technologically advanced software allow to perform with Lungtest Mobile the slow spirometry and flow-capacity curve. The full system of control over the correctness and quality of the performed examination compliant with the ERS and ATS guidelines, and the possibility to interpret and report the results of the performed examinations put the Lungtest Mobile spirometer on a par with the specialised diagnostic spirometric systems.

Examinations performed by the spirometer

• Slow spirometry:
  VC, IC, ERV, TV, BF.

• Flow-volume curve:
  FEV 1, FVC EX, PEF, MEF 75, MEF 50, MEF 25, FEF25/75, TPEF, FET, MIF 50, BEV, FEV1/VC MAX, VC IN, Grade(A-F)

 Bronchodilatation test

• Automatic evaluation of a diastolic test concisten with ERS standard.

 Aditional options

• Maximum voluntary ventilation
• Measured and calculated parameters: MVV,BF,BR
• Electronic weather station module - for ATP/BTPS conection
• Transmissions of recorded tests to external programs

 Basic advantages and possibilities of the Lungtest Mobile spirometer:

• replaceable measurement heads – with no anti-bacterial filters – completely protect the examined patient from the infection of the respiratory
• automatic control over the correctness of the examination performance according to the ERS/ATS 2005 standard with additional comments
• automatic assessment of the quality of the correctly performed examination in the A-F scale
• automatic assessment of the diastolic test according to ERS with text commentary
• possibility to turn on the automatic diagnosis system
• graphical and numerical demonstration of the results comparision for 30 recorded tests maximum
• possibility to present the slow spirometry and the flow-volume curve
• comparison of the results with predicted values
• possibility to calculate standard deviations and percentile of the due values
• high definition colour youch-screen 7 inches
• big screen icon driven interface easy operated by finger
• very fast and quiet printer
• very large 1000 patient database with quick searching
• direct connection to external printers
• possibility to control the spirometer calibration by the user with the use of 3 liters syringe
• possibility to edit one’s own report from the examination
• possibility to transmit results of tests to PC computer in order to create own reports
• ergonomic patented handle of the replaceable measurement head
• small weight
• latest versions of software included in the price of the spirometers
• small weight
• two USB ports
