Maico MI 24 Timpanometer

SPECIFICATIONS

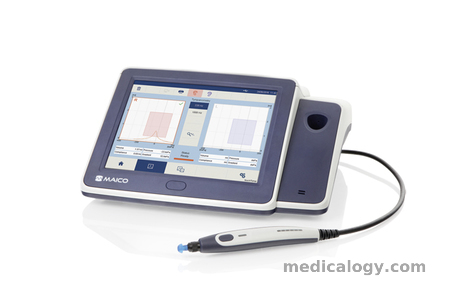

touchTymp MI 24
The first in our ALL-TOUCH impedance line
A new generation of intuitive impedance testing.

Simply intuitive
The touchTymp combines a full 10.4" touchscreen interfaceand an innovative icon structure for amazingly intuitivehandling. The large colour display allows the user to easily change parameters with a maximum of 3 clicks. touchTymp simply improves every professional's daily workfl ow.
Patient-focused testing
Designed to help the user remain focused on the patient rather than on the measurement - the unique light bar on the ergonomic and responsive probe provides a real-time progression of the test. Plus, advanced light indicators show which ear is tested and the test result.
Comprehensive test protocols
The touchTymp MI 24 provides comprehensive standard protocols for immediate operation of all screening test processes: tympanometry with 226 Hz, tympanometry with automatic acoustic refl exes, or tympanometry with acoustic reflexes at a fi xed level. The optional high-frequency probe tone of 1 kHz is ideal for providing reliable results when testing newborns.
Printing made easy
Test results and reports can be printed quickly using the built-in printer. When placing the probe into the probe holder, the test results will print automatically – touchTymp really is that easy and intuitive.
Features at a glance

• Provides test results within seconds
• Allows testing from infants to adults
• Customisable to suit individual needs
• Full touch-based interface for intuitive handling
• Innovative probe lights allow for patient-focused operation
• Probe tone 226 Hz, optional high-frequency probe tone 1 kHz
• Acoustic refl ex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsi- and optional contralateral)
• High resolution and quick screen transitions
• Built-in printer

Technical Data touchTymp MI 24

TYMPANOMETRY

• Probe Frequency 226 Hz ± 1 %, 85 dBSPL (69 dBHL) ± 1.5 dB
• Optional High Frequency 1 kHz ± 1%, 69 dBSPL (69 dBHL) ± 1.5 dB
• Pressure Range -400 to +200 daPa
• Accuracy of Pressure ± 5 % or ± 10 daPa
• Volume Range 0.1 to 8.0 ml at 226 Hz
• Compliance Range 0.1 to 8.0 ml at 226 Hz
• Accuracy of Volume ± 5 % or 0.1 ml
• Test Time 3 - 5 seconds

REFLEX MODE

• Test Frequencies 0.5, 1, 2, 4 kHz ± 1 %
• Test Method Ipsilateral; optional contralateral
• Level Ipsilateral 70 to 105 dBHL
• Level Contralateral 70 to 120 dBHLwith contra phone receiver
• Level Setting Automatic or fi xed
• Ipsilateral Reflex Test With AGC

DEVICE GENERAL

• Display 10.4" Graphic LED Display with resistive touchscreen
• PC Interface USB
• Probe Lightweight hand-held probe with built-in control light and switch
• Printer Fast, virtually silent 4-inch thermal printer
• Power Supply Mains 100 to 240 V~ ± 10 %, 50 - 60 Hz ± 10 %
• Dimensions W 30 x D 34.5 x H 14.8 cm
• Weight 3.2 kg

STANDARD
IEC 60601-1, class I, type B, IEC 60645-5, type 2, according to medical device directive 93/42/EEC

STANDARD COMPONENTS
Pen Probe, built-in calibration cavity, Sanibel ear tip kit, built-in printer and roll of thermal paper, mains cable, probe fl oss kit, MAICO USB fl ash drive kit, Impedance Module software, USB cable, cleaning cloth, touch pen

OPTIONAL ACCESSORIES
Contralateral phones: DD45 C, CIR22, IP30

SANIBEL
We highly recommend to use Sanibel disposables in order to guarantee optimal test results.
