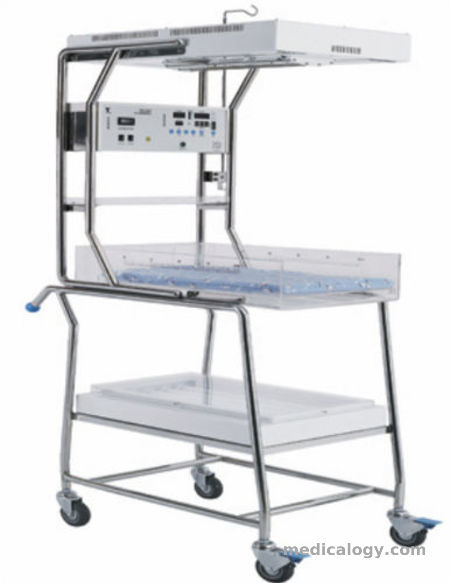

Infant Radiant Warmer GEA HKN 2000

Type : Infant Radiant Warmer + Phototherapy HKN-2000

Features:

- Air temp and skin-temp, servo controlled by Mocro-process

- Automatic adjust power supply AC/DC or ambulance power supply

- With isolated alarm system, it will be automatic ruuning as soon as the normal alarm system broken.

-With specially connector for ambulance power supply

- With super long trolley for assembly necessary medical device (patient monitor, infusion pump, etc).

- Six quiet operate iris port..

- Heating power rate 0-100%.

- Double wall prevent heat losing.

- The acces  panel can open in two side for draw out the bassinet from hood.

- The chamber hood can whole move, convenient for any rescue operating.

- Gradient of the bassinet can be adjusted in two step.

- Trolley stand can pucker, and suitable for ambulance delivery.

Specifications:

- Power supply requirements

AC :  AC 220 V±10%, 50 Hz ± 10%, 200VA Max

DC : 12 V, 150 VA Max. or less, 24 V, 150 VA Max.

- Internal battery specifications

Type : Topin® TP12-36 Battery

Quantity :  Two

Voltage :  12 V / 26 AH

Charge time :  12 Hours for one battery

Life expentancy :  200 complete charge/discharge cycles

Work time at temperature equilibrium  :  45 min for one battery

Battery's length :  17.5 cm

Battery's width : 16.6 cm

Battery's height                :  12.6 cm

Battery's weight :  9.1 kg

- Ambient temperature (normal)

Operating range (limited) :  0’C ~ 40’C

Storage range :  40’C ~ 70’C

- Ambient humidity

Operating range (limited) :  % ~ 75% RH non-condensing

Storage range :  95% RH non-condensing

Atmosperic presssure

Atmosphere pressure range when transport :  500 hPa ~ 1060 hPa
