harga Box Vaksin dan Obat TCW 40 SDD - Generator 3

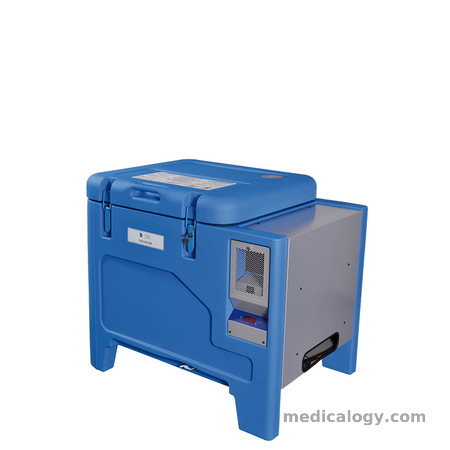

Box Vaksin dan Obat TCW 40 SDD - Generator 3

Berat: 300.0 kg Brand: Dometic SKU: 14000MOD No Registrasi: AKL 20209615936

Dijamin original dan bergaransi

Designed for tropical temperatures of 5°C to 43°C

Harga Box Vaksin dan Obat TCW 40 SDD - Generator 3 :

Untuk informasi harga dan yang lainnya, silakan hubungi kami

Produk yang dibeli bersamaan:

Total = Rp0
( 0 of 0 items selected )

Deskripsi Box Vaksin dan Obat TCW 40 SDD - Generator 3

The special boxes, made from rotationally moulded polyethylene (a virtually indestructible material), feature an extremely sturdy casing that is corrosion resistant and almost impervious to external forces caused by bumps and falls etc.In the most difficult situations and remote areas in the world, our customers can count on us to ensure the success of their vaccination campaigns. Our new data logger ensures the cold chain is respected and every vaccine is both safe and usable, improving patient outcomes and reducing waste. And our new health center kit uses sunlight to provide power for light, ventilation and mobile phone charging – offering vital help and extra comfort to patients and healthcare staff alike.

  • Simple and user friendly “1 button” operation
  • Robust cooling system with Secop (Danfoss) compressor and fan cooled condenser
  • Best autonomy times in the market for SDD health center refrigerators
  • The quick connector allows “Plug and Play” installation
  • No professional staff needed for the installation
  • Rotomoulded body construction: rust free and extremely robust
  • 100mm PU foam insulation guarantees highest possible hold over time
  • Triple silicon replaceable gaskets
  • Full mice protection
  • No freezing risks in the refrigeration compartment
  • Newly developed B Medical Systems cold chain digital controller
  • Temperature monitoring maintained in power failure periods


Additional Information

Vaccine storage capacity (l)


Hold over time (at +43°C)

93 h 24 min

Autonomy time (+2°C to +8°C)

81 h 54 min

External dimensions (H x W x D) (mm)

900 x 1030 x 780

Shipping dimensions H x W x D (mm)

1060 x 1040 x 800

Shipping weight (kg)


Outer Material


Interior material




Insulation thickness (mm)


Temperature class

+5°C – +43°C ambient temperature (Climate zone: Hot)

Refrigerant type


Voltage (V)

12 – 20

Energy consumption (Kwh/24h)

0,67 kWh / 24 h at +43°C (cool down), 0,69 kWh / 24 h at +43°C (stable running)


4 x 0.6 L PCM, 4 x 4.8 L, 8 x 0.6 L, Ice packs act as ice bank during power cuts

Scope of delivery

1 x Basic Toolkit, 1 x Cleaning brush, 1 x Compass, 1 x Lockable lid, 1 x Vaccine storage basket, 2 x Spacers

WHO test procedure


WHO specifications
