harga Box Vaksin dan Obat TCW 40 SDD - Generator 1

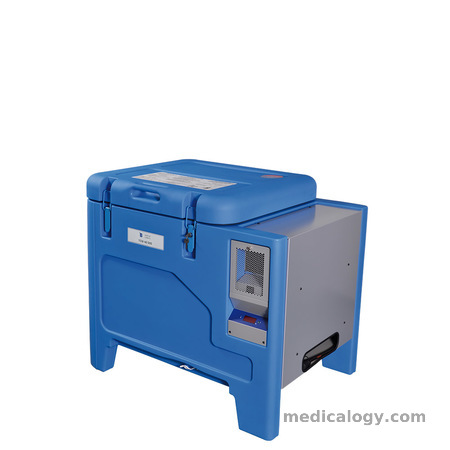

Box Vaksin dan Obat TCW 40 SDD - Generator 1

Berat: 300.0 kg Brand: Dometic SKU: 93000MOD

Dijamin original dan bergaransi

  • 100 mm PU foam insulation guarantees highest possible hold over time
  • Designed for tropical temperatures: +5°C to +43°C
  • Digital temperature display, with included power LED
  • Temperature monitoring maintained in power failure periods

Download brosur Box Vaksin dan Obat TCW 40 SDD - Generator 1

Harga Box Vaksin dan Obat TCW 40 SDD - Generator 1 :

Untuk informasi harga dan yang lainnya, silakan hubungi kami

Produk yang dibeli bersamaan:

Total = Rp3.500.000
( 1 of 1 items selected )

Deskripsi Box Vaksin dan Obat TCW 40 SDD - Generator 1

The special boxes, made from rotationally moulded polyethylene (a virtually indestructible material), feature an extremely sturdy casing that is corrosion resistant and almost impervious to external forces caused by bumps and falls etc.
The insulating foam injected into the double walls ensures the containers maintain stable temperature even at higher ambient temperatures. All transport boxes can be easily and thoroughly cleaned and disinfected with conventional disinfectants. There are no inaccessible corners or areas inside the transport systems.The clasps on the lids can be tamper-sealed or fitted with locks to protect against unauthorised access during transport. Document holders are provided for safe storage of transport documents. Alat Pembawa Vaksin (box vaksin dometic) ini merupakan alat yang umum digunakan untuk menyimpan sementara vaksin yang akan dikirim ke konsumen dalam kondisi jarak terlampau jauh.

Solar Generator – Plug & Play Installation

The TCW 40R SDD goes with one solar generator. It connects to the TCW 40R SDD by quick connectors – only one way works. The solar generators are available in 2 versions:

  • G 1 – roof installation without panel adjustment
  • G 2 – roof installation with panel adjustment

Additional Information

Vaccine storage capacity (l)


Hold over time (at +43°C)

93 h 24 min

Autonomy time (+2°C to +8°C)

81 h 54 min

External dimensions (H x W x D) (mm)

900 x 1030 x 780

Shipping dimensions H x W x D (mm)

1060 x 1040 x 800

Shipping weight (kg)


Outer Material


Interior material




Insulation thickness (mm)


Temperature class

+5°C – +43°C ambient temperature (Climate zone: Hot)

Refrigerant type


Voltage (V)

12 – 20

Energy consumption (Kwh/24h)

0,67 kWh / 24 h at +43°C (cool down), 0,69 kWh / 24 h at +43°C (stable running)


4 x 0.6 L PCM, 4 x 4.8 L, 8 x 0.6 L, Ice packs act as ice bank during power cuts

Scope of delivery

1 x Basic Toolkit, 1 x Cleaning brush, 1 x Compass, 1 x Lockable lid, 1 x Vaccine storage basket, 2 x Spacers

WHO test procedure


WHO specifications
